2216 FLEXIBLE LED STRIP LIGHT

    Products Name: FS2216D240V24

    Wattage: 12W

    Input Voltage: DC12V/24V

    LED Type: COB

    Dimension:None

    PCB Width: None

    CCT:2700k/3000K/4000K/6000K

    CRI:80+/90+/95+

    Lumen Output: None

    Beam Angle: 45°

    IP Rating: IP20/IP65/67/68

    Dimmable:YES

    Cetification:None

PRODUCT DESCRIPTION

2216 FLEXIBLE LED STRIP LIGHT

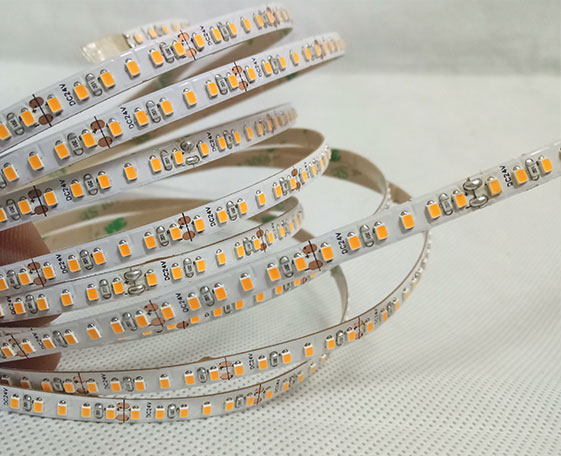

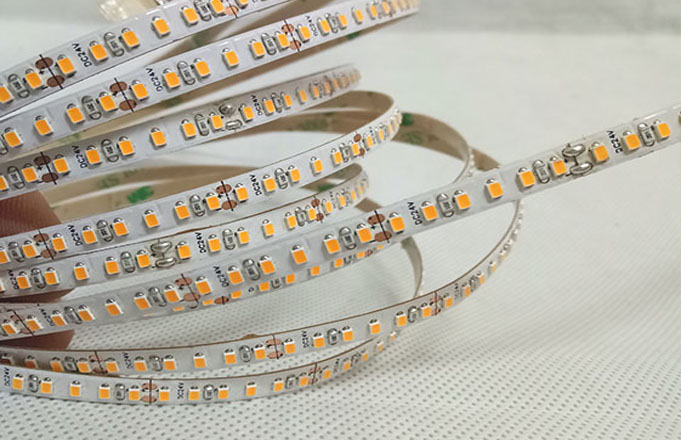

SMD2216 Flexible LED Strip Light

Rich color, variety of color optional, easy to install (with 3M adhesive tape or aluminum profile).2216 led strip lights install with aluminum profileAlso can be used according to the environmental needs waterproof design, waterproof level as high as IP68, use DC12 v / 24 v voltage, safe and reliable. 2216 SMD luminous efficacy is about 100lm/W, CRI > 90. This strip is designed for optimal performance and brightness without degradation for long term use.


1.Our SMD LED use copper base and gold wire which provide good heat dispersion, long life span and low Luminous Decay.
2. Our flexible PCB are all high quality double layers PCB, at least 2 ounces, or 3 ounces in particular models.
3. We always require same bin number SMD LEDs for different production batches for the same customer.
4.We have Everfine integrating sphere to test the color temperature of incoming SMD LEDs and put it in our QC records for every batch.

Parameters

Item Type

60leds/m 2216 LED Strip

120leds/m 2216 LED Strip
204leds/m 2216 LED Strip
Led ModelFS2216-60-12/24VFS2216-120-12/24V
FS2216-240-24V
LED Qty60Leds/M120Leds/M
204Leds/M
Ra90/95/97+90/95/97+
90/95/97+
CCT(K)

2200K/2700K/3000K

/4000K/6500K

2200K/2700K/3000K/

4000K/6500K

2200K/2700K/3000K/

4000K/6500K

Dimmensions(mm)5000 *5/8/10 (L * W)5000 *5/8/10(L * W)
5000 *5/8/10(L * W )
Voltage
12V/24V12V/24V
12V/24V
Power4.8W/m9.6w/m12w/m
IP RatingIP20/IP54/IP65/IP67/IP68IP20/IP54/IP65/IP67/IP68
IP20/IP54/IP65/IP67/IP68
Bean Angel120º120º
120º
CertificationCE/RoHSCE/RoHS
CE/RoHS
Warranty3 Years3 Years


3 Years

LED colors

LED color.jpg

Color & Temperature(K):W:1800/2200/2400/2700/3000/4000/5000/6500 /Red/Green/Blue/Yellow/Amber/Pink/Purple


LED Bin

SDCM>1 ; SDCM>3 or SDCM>5 is optional

LED bin.jpg

CRI

Ra>80/90/95  (Customized for 96- 98 )
