Home >> LED STRIPS >> CCT Tunable LED Strip

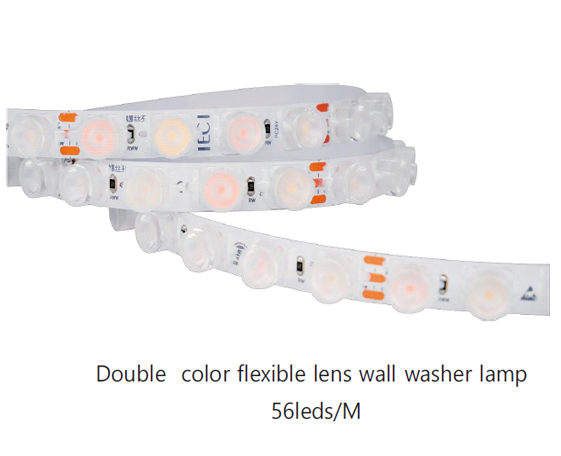

SMD3030-56leds/m CCT adjustable Flexible Lens Wall Washer

    Products Name: LMWT-FS3030CCT-56D-12MM(Flexible Lens Wall Washer)

    Wattage: 14.4W/M

    Input Voltage: DC24V

    LED Type: SMD3030

    Dimension:L5000 *W12MM*H1.5MM

    PCB Width: None

    CCT:2700+6500K

    CRI:97+

    Lumen Output: 1890lm

    Beam Angle: 120

    IP Rating: IP20, IP67

    Dimmable:Yes

    Cetification:

PRODUCT DESCRIPTION

SMD3030-56leds/m CCT adjustable Flexible Lens Wall Washer

High CRI97+ DC24V SMD3030-56leds/m 12mm width IP20 CCT adjustable Flexible Lens Wall Washer


Parameters:

Model:LMWT-FS3030CCT-56D-12MM(Flexible Lens Wall Washer)
Voltage : DC24V
PCB widt h: 12mm
Color Rendering Index(CRI) : Ra>97
P ower : 14.4W/M *2 channel
Color temperature :2700K+6500K
L uminance efficienc y: 104lm/W
L uminous flux :1497.6lm/M
Cut : 71.43mm
Waterproof process :IP20, IP67 Silicone comprehensive protectio
Lamp interval :17.85mm
Warranty : 3YEAR
Size: L5000 *W12MM *H1.5MM


[ Remarks ]: Voltage/board width/power/luminous flux/display, etc. can be
customized ( power/luminous flux value± 10%) PCB: Pure copper double-sided board


LED Colors:

Color & Temperature(K):W:1800/2200/2400/2700/3000/4000/5000/6500 /Red/Green/Blue/Yellow/Amber/Pink/Purple ect.


Spectroscopic Standard:

CRI: Ra>80+/90+/97+ Available

People are also very concerned about the color rendering index when choosing a light strip,
because soft lighting combined with high color rendering index can give people a different feeling
Ra>80 Ra>90 The difference in color rendering is that the illumination sensation of the light source is different.

Currently,the best color rendering index is 100 (natural light)

It can be seen that 90 is closer, and the color reproduction of the two also needs to be different,
The reduction index of 90 will be higher because it is closer to natural light,
The value of 80 will be relatively low, so this aspect also needs to be considered when selecting light strips.

From the perspective of protecting vision, The color rendering index of the lamps used needs to be greater than 80.

Children’s school supplies and textbooks are rich in color, and the lighting used for learning can cause color distortion

if the color rendering index is low, this can lead to visual fatigue and myopia. So, the closer the eye protection light that

accompanies children in reading and learning, the higher the indication, the better is.



APPLICATION:

 Home Decorative lighting /Cabinets and Shelving / Hotel Lobbies lighting/Store Display Lighting

Patio and Garden Lighting/ architectural building/Automotive lighting /Car &Motorcycle lighting

Under cabinet lighting/Under car lighting/Atmosphere lighting
