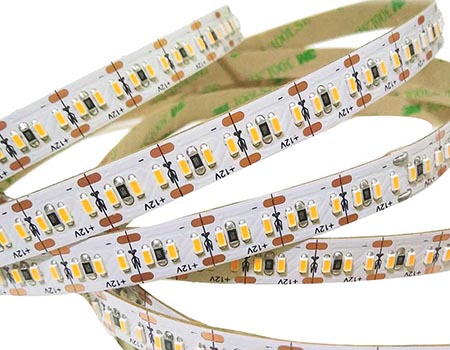

Flexible SMD3014 LED Strip Light

Flexible SMD3014 LED Strip Light

The 3014 led strip light is made of 3014 LED with a smaller size. The power of a single LED is about 0.1w and the brightness is 10-12lm.The 3014 LED adopts a vertical package structure, and the chip and the heat sink are directly connected to improve the heat dissipation performance,
thereby being able to withstand higher current and high brightness.

Compared with 3528 LED, it has a smaller size, higher brightness, and better heat dissipation structure. Low light decay, low thermal resistance, and good thermal conductivity.

3014 led strip lights install with aluminum profile, Due to its unique size design, it can be used to make positive view led light strips, side view led light strips, and high density led strips.
The 3014 lamp strip produced by H&Q Lighting is made using SANAN, EPISTAR, NICHIA, CREE, SAMSUNG chips.

1.Our SMD LED use copper base and gold wire which provide good heat dispersion, long life span and low Luminous Decay.
2. Our flexible PCB are all high quality double layers PCB, at least 2 ounces, or 3 ounces in particular models.
3. We always require same bin number SMD LEDs for different production batches for the same customer.
4.We have Everfine integrating sphere to test the color temperature of incoming SMD LEDs and put it in our QC records for every batch.

Parameters

LED Colors

Color & Temperature(K):W:1800/2200/2400/2700/3000/4000/5000/6500 /Red/Green/Blue/Yellow/Amber/Pink/Purple

LED Bin

Color & Temperature(K):W:1800/2200/2400/2700/3000/4000/5000/6500 /Red/Green/Blue/Yellow/Amber/Pink/Purple

SDCM>1 ; SDCM>3 or SDCM>5 is optional

CRI

Ra>80/90/95  (Customized for 96- 98 )

PCB Board

* The standard PCB board color is white, there are Red/Blue/Green/Black/Brown/Yellow ect color available

* Double size high quality cooper material, 2Oz,3Oz,4Oz thickness optional

* Customized service, such as print LOGO, company name and other is acceptable.

Single line,Double line or customized
