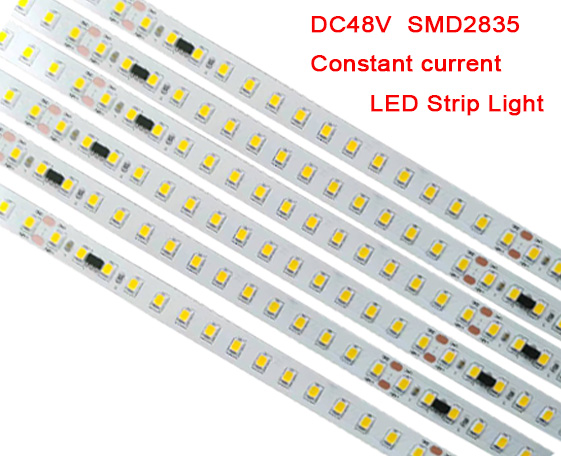

DC48V SMD2835 CONSTANT CURRENT LED STRIP

DC48V SMD2835 Constant Current LED Flexible LED strip

The power design of the 2835 LED is 0.2w, and the brightness is 26-28lm.
2835 LED also can be packaged to 0.2W/0.5W/1W/3W. At the same time, two-chip parallel or two-chip series design can be used to realize high-voltage LED design and reduce driving cost.

The short-unit cuttable 2835 LED Strip Lights usually use a 9V, or 18V high voltage LED.

2835 led strip lights install with aluminum profileThe cooling method of the 2835 LED strip is to make the heat of the chip directly transmitted to the aluminum substrate by punching the hole on the lamp holder and mounting the heat conductive piece.
In order to distinguish it from the heat dissipation mode of the 3528, the heat dissipation method is also called "Separation of thermoelectricity". Means that heat and current are not conducted through the same wire.

LMWT 2835 led strip's chip suppliers are: Sanan, Epistar, Nicha, Cree, Samsung and so on.

1.Our SMD LED use copper base and gold wire which provide good heat dispersion, long life span and low Luminous Decay.
2. Our flexible PCB are all high quality double layers PCB, at least 2 ounces, or 3 ounces in particular models.
3. We always require same bin number SMD LEDs for different production batches for the same customer.
4.We have Everfine integrating sphere to test the color temperature of incoming SMD LEDs and put it in our QC records for every batch.

Parameters

the super length  DC48V Constant current LED strips can be more than 30meters without voltage drop

LED colors

Color & Temperature(K):W:1800/2200/2400/2700/3000/4000/5000/6500 /Red/Green/Blue/Yellow/Amber/Pink/Purple

LED Bin

SDCM>1 ; SDCM>3 or SDCM>5 is optional

CRI

Ra>80/90/95  (Customized for 96- 98 )

PCB Board

* The standard PCB board color is white, there are Red/Blue/Green/Black/Brown/Yellow ect color available

* Double size high quality cooper material, 2Oz,3Oz,4Oz thickness optional

* Customized service, such as print LOGO, company name and other is acceptable.

Single line,Double line or customized
