3014 Side Eimmting LED Flexible strip light

3014 Side Eimmting LED Flexible strip light

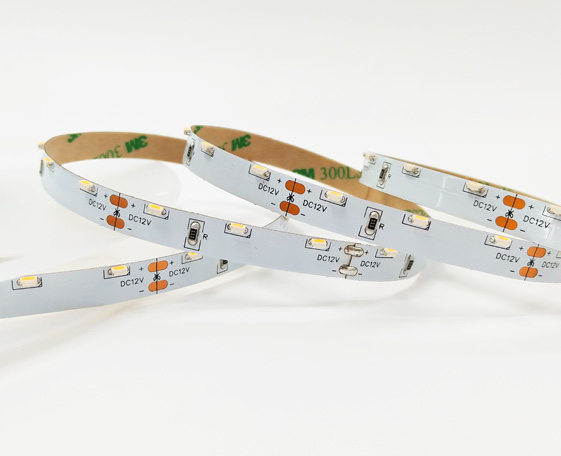

3014 flexible LED Strip Lights is using the 3014 side view or side emitting diode. The light strip has strong deformability and can be cut and wound at will. It has high flexibility and strong variability in engineering a

pplications. The product adopts DC12V/24V direct current low-voltage power supply mode, with high safety factor and simple engineering acceptance procedures. It has the characteristics of high brightness, low light attenuation, energy saving and environmental protection.

by dimming, you can adjust the color temperature from 3000K full brightness to 1800K

1.Our SMD LED use copper base and gold wire which provide good heat dispersion, long life span and low Luminous Decay.
2. Our flexible PCB are all high quality double layers PCB, at least 2 ounces, or 3 ounces in particular models.
3. We always require same bin number SMD LEDs for different production batches for the same customer.
4.We have Everfine integrating sphere to test the color temperature of incoming SMD LEDs and put it in our QC records for every batch.

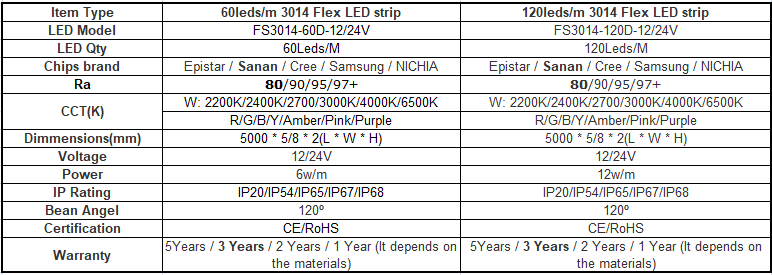

Parameters

LED colors

Color & Temperature(K):W:1800/2200/2400/2700/3000/4000/5000/6500 /Red/Green/Blue/Yellow/Amber/Pink/Purple

LED Bin

SDCM>1 ; SDCM>3 or SDCM>5 is optional

CRI

Ra>80/90/95  (Customized for 96- 98 )

PCB Board

* The standard PCB board color is white, there are Red/Blue/Green/Black/Brown/Yellow ect color available

* Double size high quality cooper material, 2Oz,3Oz,4Oz thickness optional

* Customized service, such as print LOGO, company name and other is acceptable.

Single line,Double line or customized
