Mini size Cuttable LED Strip

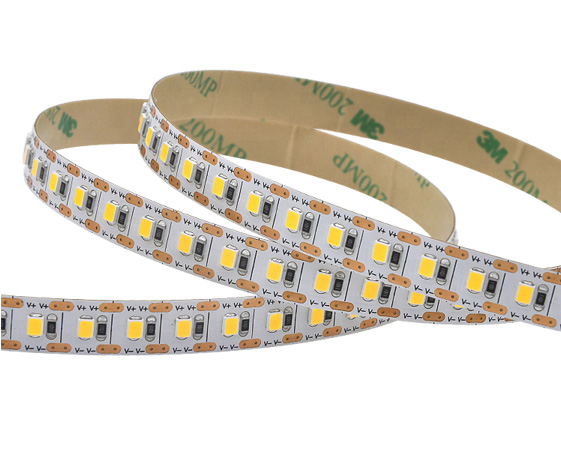

1 LED Mini cuttable 2835 Flexible LED Strip Light

The power design of the 2835 LED is 0.2w, and the brightness is 26-28lm.
2835 LED also can be packaged to 0.2W/0.5W/1W/3W. At the same time, two-chip parallel or two-chip series design can be used to realize high-voltage LED design and reduce driving cost.

The short-unit cuttable 2835 led strip lights usually use a 9V, or 18V high voltage LED.

2835 led strip lights install with aluminum profileThe cooling method of the 2835 LED strip is to make the heat of the chip directly transmitted to the aluminum substrate by punching the hole on the lamp holder and mounting the heat conductive piece.
In order to distinguish it from the heat dissipation mode of the 3528, the heat dissipation method is also called "Separation of thermoelectricity". Means that heat and current are not conducted through the same wire.

LMWT 2835 led strip's chip suppliers are: Sanan, Epistar, Nicha, Cree, Samsung and so on.

Parameters:

LED colors

Color & Temperature(K):W:1800/2200/2400/2700/3000/4000/5000/6500 /Red/Green/Blue/Yellow/Amber/Pink/Purple

LED Bin

SDCM>1 ; SDCM>3 or SDCM>5 is optional

CRI

Ra>80/90/95  (Customized for 96- 98 )
