Home >> LED STRIPS >> CCT Tunable LED Strip

CSP416LEDs/m IP20 CCT Adjustable Flex LED Strip

    Products Name: LMWT-CSP416CCT-10MM

    Wattage: 16W/m

    Input Voltage: DC24V

    LED Type: SMD2835

    Dimension:L5000 *W10MM *H1.5MM

    PCB Width: None

    CCT:1800K+5000K 2400K+6500K 2700K+6500K

    CRI:90+

    Lumen Output: 1236lm

    Beam Angle: 120

    IP Rating: IP20/IP54/IP65/IP68

    Dimmable:Yes

    Cetification:

PRODUCT DESCRIPTION

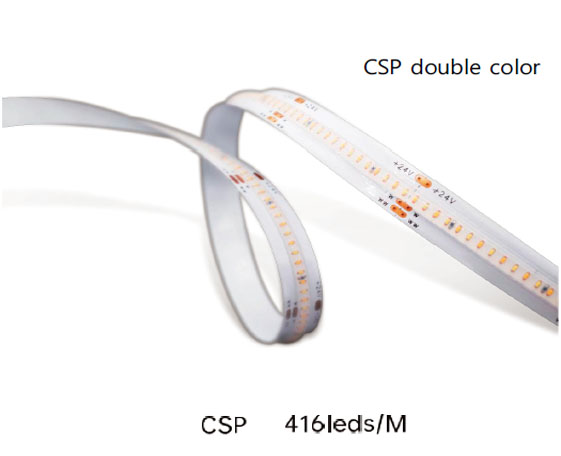

CSP416LEDs/m IP20 CCT Adjustable Flex LED Strip

High CRI90+ DC24V 10MM width CSP416LEDs/m IP20 CCT Adjustable Flex LED Strip


CSP is one of the latest technologies in the LED industry.CSP in the LED industry refers to a packaging form with the smallest volume and simplest structure,without a substrate or gold wire. Compared to traditional SMD packaging,CSP packaging is simpler in process,less consumable, lower in cost, and has a much larger luminous
angle and direction than other packaging forms.Due to the particularity of its packaging process, CSP light strips can achieve smaller volume, lighter weight,and smaller bending force points.


Parameters:

Mode:LMWT-CSP416CCT-10MM
Voltage : DC24V
PCB widt h: 10mm
Color rendering index(CRI): Ra>90
P ower : 16W/M
Color temperature :3000K+6000K
L uminance efficiency: 105lm/W
L uminous flux :1680lm/M
Cut : 38.5mm

Waterproof Process :
IP20 No-waterproof       IP54 Semi-silicone protection
IP65 Silicone pipeline protection     IP68 Silicone comprehensive Protection

Lamp interval :/
Warranty : 3YEAR
Size:L5000 *W10MM *H1.5MM

[ Remarks ]: Voltage/board width/power/luminous flux/display, etc. can be
customized ( power/luminous flux value± 10%) PCB: Pure copper double-sided board


LED Colors:

Color & Temperature(K):W:1800/2200/2400/2700/3000/4000/5000/6500 /Red/Green/Blue/Yellow/Amber/Pink/Purple ect.


Spectroscopic Standard:

CRI: Ra>80+/90+/97+ Available

People are also very concerned about the color rendering index when choosing a light strip,
because soft lighting combined with high color rendering index can give people a different feeling
Ra>80 Ra>90 The difference in color rendering is that the illumination sensation of the light source is different.

Currently,the best color rendering index is 100 (natural light)

It can be seen that 90 is closer, and the color reproduction of the two also needs to be different,
The reduction index of 90 will be higher because it is closer to natural light,
The value of 80 will be relatively low, so this aspect also needs to be considered when selecting light strips.

From the perspective of protecting vision, The color rendering index of the lamps used needs to be greater than 80.

Children’s school supplies and textbooks are rich in color, and the lighting used for learning can cause color distortion

if the color rendering index is low, this can lead to visual fatigue and myopia. So, the closer the eye protection light that

accompanies children in reading and learning, the higher the indication, the better is.



APPLICATION:

 Home Decorative lighting /Cabinets and Shelving / Hotel Lobbies lighting/Store Display Lighting

Patio and Garden Lighting/ architectural building/Automotive lighting /Car &Motorcycle lighting

Under cabinet lighting/Under car lighting/Atmosphere lighting
