5050 CCT adjustable LED Strip Light

    Products Name: 5050

    Wattage: 12W

    Input Voltage: DC12V/24V

    LED Type: COB

    Dimension:None

    PCB Width: None

    CCT:2700k-6500K

    CRI:80+/90+/95+

    Lumen Output: None

    Beam Angle: 45°

    IP Rating: IP20/IP65/67/68

    Dimmable:YES

    Cetification:None

PRODUCT DESCRIPTION

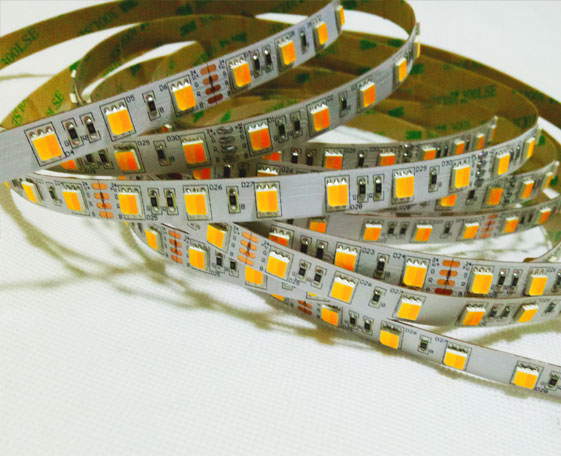

5050 CCT adjustable LED Strip Light

5050 CCT adjustable LED Strip Light

5050 CCT adjustable strip sights with pure white and warm white in one 5050 SMD LED, We use the newest led as light source, the new led use special production techniques, which adopts single led with double chips white and warm white as light source, which completely solve the market defect of mixing color no uniform and poor. Beside, SMD5050 led strip light has high brightness, excellent heat dissipation and uniform luminance. Epistar chip. brand led and pcb ensure the quality of flexible led strip light. This is a good choice to meet the demand of indoor lighting design and innovative lighting projects. With a remote controller, you can use it in different applications.from warm white 2700k to cool white 6500K.


1.Our SMD LED use copper base and gold wire which provide good heat dispersion, long life span and low Luminous Decay.
2. Our flexible PCB are all high quality double layers PCB, at least 2 ounces, or 3 ounces in particular models.
3. We always require same bin number SMD LEDs for different production batches for the same customer.
4.We have Everfine integrating sphere to test the color temperature of incoming SMD LEDs and put it in our QC records for every batch.

Parameters

Item Type60leds/m   5050 CCT LED Strip
LED ModelFS5050CCT60D-24V
LED   Qty60Leds/M
Ra80/90/95/97+
CCT(K)2700+6500K
Dimmensions(mm)5000 * 10 * 2(L * W * H)
Voltage24V
Power19.2w/m
IP RatingIP20/IP54/IP65/IP67/IP68
Bean Angel120º
CertificationCE/RoHS


LED colors

LED color.jpg

Color & Temperature(K):W:1800/2200/2400/2700/3000/4000/5000/6500 /Red/Green/Blue/Yellow/Amber/Pink/Purple


LED Bin

SDCM>1 ; SDCM>3 or SDCM>5 is optional

LED bin.jpg

CRI

Ra>80/90/95  (Customized for 96- 98 )
